EDAG Biwak Concept, 2006




  • EDAG Biwak Concept, 2006

For the new EDAG concept car, the classic, half-rounded beetle shape has been converted into an estate silhouette, creating extra room for various new professional and leisure applications. As well as offering the advantages of a marked increase in storage space and greater headroom for the back seat passengers, the the SUV light concept also provides more ground clearance, to enable the driver to take the vehicle off the road or race track. Practical and stylish: the rear door provides easy access to the luggage section. The new body design drawn up by the EDAG stylists and developed by the EDAG engineers has the potential for use in vehicles for volume production. The EDAG Biwak would be the ideal second car for a family, though it could just as easily prove popular as a stylish leisure vehicle for surfers or divers, or even do service as a delivery truck for crafts or tradesmen. The concept combines a multitude of requirements, making it attractive to a broad spectrum of customers. To demonstrate the industrial feasibility of the concept, EDAG's development and production specialists have also worked out different manufacturing concepts for various quantities.

Trim + Colour as Marketing Instruments

Geneva Version: "Patina instead of High Gloss"
To increase its appeal to the intended target groups, the EDAG design team have created a sophisticated concept for individual equipment and features. Johannes Barckmann explains: "By utilising clearly worked out colour and trim concepts, we can adapt the look of the EDAG Biwak to appeal to the various target groups - high gloss finish and chrome elements for the bank clerk; crinkle finish, steel rims and denim for the young rebel. By offering numerous alternative versions of the extras, we can satisfy the customers' constant calls for individualisation."

With the version for the Geneva Show, EDAG deliberately set out to produce a provocative exterior - the EDAG Biwak look was inspired by the spirit of the grunge movement of the early 1990s, and takes up a successful trend in the fashion branch.
A matt crinkle finish on the ourtside combined with natural leather and denim on the inside create a direct counterpoint to the usual high-gloss look of other new cars.
The crinkle finish lends the EDAG Biwak a used look, which brings the direct utility value of the vehicle very much to the fore. "We are giving the customer the freedom to make full use of the vehicle, dispelling his or her worries about that first, inevitable scratch in the paintwork," is how Johannes accounts for the provocative trim colour concept.
In this case, the motto "patina instead of high gloss" is directed at a target group intent upon breaking with convention. Just one example of how colour and trim can be employed as marketing instruments.

Devon GTX, 2010

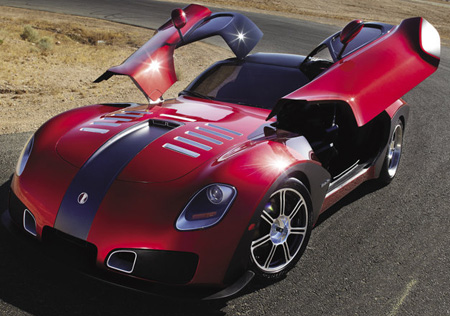

  • Devon GTX, 2010

Constructed of aircraft-quality carbon fiber from stem to stern, the Devon GTX instantly communicates its ultra-performance capability through aggressive, compact proportions and large (up to 20-inch) lattice-structure center-lock wheels. In all, the exterior design navigates between the past and science fiction, subtly blending muscle, curves, exquisite shapes and dynamic graphics to create a classical, yet futuristic, statement that's ready to stand the test of time.

Vehicle Structure
Overlaying its steel structure is a glove-fit, single-piece molded superstructure made of carbon fiber. Construction of the superstructure requires a complex mold - essentially the size of the vehicle - in which all datum and attachment points are positioned within literally fractions of a millimeter. Once the superstructure is in place, all body panel attachment points are inherently accurate for uncommonly consistent builds. The superstructure - due to the use of carbon fiber - is also extremely lightweight, strong and stiff, ensuring outstanding crash performance, noise / vibration tuning, and incredibly accurate chassis tuning.

The Exterior
While overall shape of the new Devon GTX carries traditional "muscle car" dimensions with a long dash-to-axle and short front and rear offsets, it's executed in the context of sophistication and athletic grace. Seemingly honed from a single billet, the Devon GTX's flowing exterior skin is formed of carbon fiber, which enables precise molding - rather than traditional stamping - of exterior fenders, panels, and closures. Large (18 / 19-inch or 19 / 20-inch combinations) 12-spoke aluminum forged monoblock lattice structured wheels lead the eye to large, ultra-performance calipers (carrying the Devon insignia) and rotors, leaving no doubt about the supercars's performance competency.

The wheels carry a machined or polished finish and painted inner-spoke surfacing leading to the Devon insignia defining the center hub. The Devon GTX is also equipped with center-mounted locking hubs, a lug-free design more commonly seen on race cars.

A wheelbase of 98.8-inches - combined with a flush wheel-to-body relationship defined by distinctive, offset-flush, tone-shaded wheel surrounds - ensures well-grounded appeal and presence as well as an agile look with more muscular front fenders and rear haunches.

The front "face" of the vehicle is absent of a traditional grille, resulting in a clean, aero-sloped front section defined by a center-positioned billet that runs uninterrupted to the center of the hood. Ample air for combustion and brake cooling is achieved through large intakes positioned in the lower forward corners. The intakes carry large chrome trapezoid-shaped inlets (approximately 3-inches wide) that lead to channeling for optimal combustion air intake and engine cooling.

Three-inch wide trapezoidal chrome dual exhaust tips match the intake inlets in the front, are side-by-side positioned, and pass through the center portion of the rear fascia, further communicating the ultra-performance capability of the new Devon offering.

Posted exterior rear-view mirrors have been aero-optimized - along with the rest of the exterior - by a dedicated team led by Dr. Joe Katz of San Diego State University (SDSU). The team's efforts led to the incorporation of a three-piece belly pan constructed of carbon fiber. In addition to providing enhanced under-car surface appeal and aerodynamics, the belly pan carries revolutionary "vortex generators" for improved downforce - a key enabler to the vehicle's exceptional agility and balance.

The Interior
The interior of the new Devon GTX has been designed with the driving enthusiast top of mind - all features, surfaces and dimensions have been created to ensure a second-to-none performance experience. A smaller diameter, thick-rimmed, leather-wrapped steering wheel ensures a performance grip and optimal feel. Carbon-fiber reinforced structured seats - carrying a racing shell design and integrated headrests - incorporate six-point racing harness seat belts (optional; five point standard) - are chrome trimmed, outfitted with stiff performance durometer seat and bolsters, and skinned with the softest real-leather hide available.

Dual-grain leather surfacing ensures a dynamically tactile environment. Seat and center console areas carry softer leather with smoother animal grain; the upper IP, pillars, headliner and door surfaces incorporate a coarser, three-dimensional tactility. All audio, HVAC, and cluster instrumentation is communicated via digital analog graphics on high-definition displays. All instrumentation incorporates bluish fluorescent illumination. The speedometer, tachometer, fuel, temperature and other mechanical related instrumentation is displayed in the cluster under a fixed hood. Audio and HVAC is displayed in the integrated centerstack. The traditional neo-retro white ball-head stick-shift is constructed of stiff polished aluminum for optimal feel and connectivity; it is directly connected to the world-class transmission that engages beneath. The shift is surrounded by a piano black finish, which carries back-lit, surface-flush touch switches for windows, door locks, related chassis controls, and an electronically actuated parking brake system.

Suspension
The independent front and rear suspensions on the 2010 Devon GTX carry aluminum components for optimized un-sprung mass, ensuring agile handling and optimal tuning for boulevard and track performance.

The Brakes
The brake system on the new Devon GTX is engineered to deliver world-class performance, appearance and durability without compromise. The technology has proven itself by winning professional sports car races and championships, yet also provides benefits that can be experienced and appreciated every day. The brake system is designed to provide shorter stopping distances, better brake modulation, firmer pedal feel and less brake fade than other high-performance luxury cars, resulting in powerful, confidence-inspiring performance.

With six pistons in each front caliper and four in each rear, the brake system is custom-tailored to the uncompromising requirements of the Devon GTX. The opposed-piston brake calipers are first forged, then weight-optimized by fully machining all exterior surfaces. The two-piece rotor design reduces weight by one-third compared to a one-piece brake rotor of the same dimensions. The patented, directional AeroRotor vane design induces up to 80-percent more cooling airflow than the rotors used as original equipment on many high-performance luxury vehicles. This reduces maximum and average operating temperatures, improving pad and rotor life.
The brake pad material was specially selected to combine the good manners required of a true high-end luxury offering in daily driving with high performance driving. The standard brake pads provide low noise levels and much less dust than typical of many high-performance luxury vehicles. At the same time, they have the high temperature capability to withstand race track lapping with low susceptibility to accelerated wear or judder that may afflict other cars.

Steering
Steering feedback to the driver is performance tuned through a premium rack and pinion steering gear. The steering system incorporates outstanding torsional stiffness with less operating friction. The result is steering precision of the highest order, with near-perfect linear response and smooth, predictable transitions.

Wheels and Tires
For sure-footed, enhanced handling, the Devon GTX is equipped with purpose designed and built Devon Motorworks forged aluminum alloy wheels with center lock configuration. Wheel sizes are 18- by 10-inches in the front; 19- by 13-inches in the rear. Larger wheels are optional and measure 19- by 10-inches in front; 20- by 13-inches in the rear. The lattice structure wheels incorporate a geometric design which not only enable views to the large brakes (static or in motion), but enable weight optimization - a key to reducing un-sprung mass.

Powertrain
The all-new 2010 Devon GTX blends athletic strength with uncompromising refinement thanks to what is perhaps the most powerful naturally aspirated production car powertrain system in the industry. The Devon GTX is equipped with an 8.4-liter (510 cubic inches) V-10 engine that produces 650 horsepower (484.7 kW) at 6100 rpm. The V-10 engine is mated with a track-proven six-speed manual transmission.The end result is a propulsion system that rivals - and in most cases surpasses - the most powerful offerings in the world.


6 Speed Manual Transmission
The transmission on the Devon GTX incorporates a host of applications to ensure effective transfer of the 8.4-liter engine's exceptional power and torque while delivering high-performance, fun-to-drive shifting characteristics. The end result: is short, crisp shift throws; smooth gear synchronization, and overall improved shift feel with little or no vibration. The transmission boasts wider gears for increased torque-handling capability; a six-gear synchronizer system for exceptional shift feel and reduced efforts; double-cone reverse gear synchronizer for eased "R" selection; strengthened housing for minimal "flex" and improved shifting; and a dual mass flywheel with twin-disc clutch.


De Tomaso Deauville Concept, 2011







  • De Tomaso Deauville Concept, 2011

Pininfarina welcomes the De Tomaso Deauville styling model on its stand at Geneva. For the glorious brand founded in Modena in 1959 by Argentine racing driver Alejandro De Tomaso, which has been brought back to life thanks to efforts of businessman Gian Mario Rossignolo, Pininfarina has designed a 5-door Sport Luxury Sedan, with an aluminium chassis and four-wheel drive. A complete product that embodies high technology and craftsmanship, combining luxury and love for engines with a decisive modern approach to design.

The project was launched at the end of 2009, when Pininfarina S.p.A. drew up with De Tomaso Automobili SpA (formerly Innovation Auto Industry S.p.A. - IAI) a company chaired by Gian Mario Rossignolo, the definitive agreement for the sale of a branch of the company that included the manufacturing plant of Grugliasco (Turin). The two companies also agreed that the first model to be produced by the reborn De Tomaso company would be designed by Pininfarina.

From the very first stages of the design process, De Tomaso and the Pininfarina design team set themselves the target of exploring new territory and creating a new market niche, developing a Sport Luxury Sedan for an exclusive clientele, designed and developed with the utmost luxury.

Luxury is not a coincidence: the development of the De Tomaso Deauville hinges on exploiting the concept of quality products that are "Made in Italy", reviving and refining in the present the characteristics of beauty and craftsmanship that are inherent in the Italian manufacturing heritage. All the cars are "custom-built" and the assembly of the details is guaranteed by the manual skills of De Tomaso specialist craftsmen. Each De Tomaso Deauville is therefore unique and self-sufficient.

But the luxury is not only embodied in the artisan construction. In addition to the Pininfarina design, the car also boasts a high technological content that puts it ahead of its time. The De Tomaso Deauville is manufactured using the innovative UNIVIS technology, which means that the bodyshell is assembled using aluminium extruded sections joined together by crossbeams that are pressed, trimmed by laser and welded. This new technology, developed and patented by IAI (Innovation in Auto Industry), the parent company of the De Tomaso group, makes it possible to drastically reduce the times and investment necessary to design a car, because the number of dies is drastically reduced to a few dozen.

The Pininfarina team tackled the design of the De Tomaso Deauville by first carrying out a historical analysis of the De Tomaso brand, and focusing on the stylistic elements that have characterised earlier models like the Mangusta or the Pantera. The challenge was to imagine a completely new type of car without distorting such an important heritage, but also to firmly avoid turning it into an exercise in nostalgia.

The result is a car that has no equal in today's car market. A sporty, seductive saloon of a considerable size (height 1630 mm, length 5080 mm, width 1950 mm), with clean, elegant lines, a decisive and immediately recognisable character and a sporty feel that is reflected on the motorist as a pleasant driving experience, while guaranteeing performance, safety, roominess, maximum comfort and all the options one would expect on a luxury saloon.

The resolution of the front is expressed by the personality of the large hexagonal grille that urges forward, transmitting assertiveness and sportiness, and reflecting the car's potential for performance, while the front light clusters, which slip towards the sides of the car, underline its dynamism. The hexagon, which harks back to motifs dear to De Tomaso history, is repeated on the side of the car (air outlet, front wing and shape of windows) and in the design of the rear light clusters. Another leitmotif runs through the car: the three upper wings of the grille, which are reiterated in the direction indicator on the front headlight and continue in the side repeater and the rear light.

Daihatsu Copen, 2007

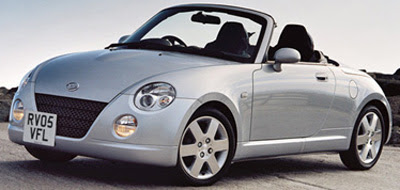

  • Daihatsu Copen, 2007

The Copen's appeal has been drastically widened thanks to the fitment of the same 87 PS engine as the Sirion supermini which not only boosts performance and economy but allows higher gearing for more relaxed cruising. The only difference to the pure uncluttered shape of the previous Daihatsu Copen is a small rear boot spoiler and a range of new colours.
Cute and timeless Daihatsu Copen sports car has become considerably more desirable with a punchy yet more frugal new 1.3 litre engine, higher gearing to enhance refinement.

New Engine Transforms Appeal
The Copen's new 1.3 litre petrol engine totally transforms the small car's appeal while providing even better fuel economy and lower exhaust emissions - a Daihatsu speciality.
The engine itself is highly-advanced and is essentially the same unit fitted to the Daihatsu Sirion supermini.
Featuring Dynamic Variable Valve Timing (DVVT) which enhances low-speed pulling power and high-rev response, the twin overhead camshaft unit is compact and light, with an alloy head and block.
The new Daihatsu Copen is only 27 kg heavier than the previous 660 cc model and now weighs a nimble 850 kg.
Power is 87 PS at 6,000 rpm with torque of 88.5 lb ft at 4,400 rpm. The engine has a 10.3:1 compression ratio and features a bore and stroke of 72 x 79.7 mm.
It also features durable chains for its camshaft drive which require no maintenance and cannot snap like belt systems. Oil change intervals are now 9,000 miles instead of the previous 660 cc model's 3,000 miles.

World's First Self-Regenerating Catalyst
The new Sirion 1.3 litre launched in 2005 featured the world's first self-regenerating catalyst. This innovation is also shared by the new Copen.
It effectively extends the life of the catalytic converter, reducing maintenance costs and is kinder to the environment as it keeps the catalyst 'healthier' over a higher mileage meaning the already low 140 g/km does not increase as the engine becomes older.
This revolutionary technology works by providing a self-regenerating capability in the particles of the precious metal which normally degrades.
Using nanotechnology, the intelligent catalyst incorporates metallic ions of palladium, the most heat-sensitive of the metals used in a catalytic converter.
According to temperature and available oxygen, the particles turn in and out of a crystalline state therefore regenerating and prolonging the cat's ability to clean exhaust gasses.

The luggage capacity with the roof up is sufficient for a weekend away. With the roof down, there is space for a soft sports bag.
The front-wheel drive Daihatsu Copen measures 3,440 mm long, has a 1,475 mm width excluding mirrors and is 1,245 mm high. Its wheelbase is 2,225 mm, overhangs are tiny and the driver sits perfectly between front and rear wheels for extra handling intimacy. The engine is transversely-mounted in the front.

Agile Chassis - Conceived As A Sports Car
Anyone expecting the Daihatsu Copen to be a shallow style-statement will be in for a surprise. The power-steering is especially direct and informative and the handling taut and agile.

High Safety Levels
Safety is given high priority in the Daihatsu Copen which - despite its small size - has all the latest life-saving and injury-reducing initiatives.
The braking system features servo-assisted front ventilated disc brakes measuring a generous 246 mm with 180 mm rear drums.
Anti-lock is also standard as is Electronic Brakeforce Distribution (EBD) which further avoids the locking-up of individual wheels during severe braking.
Daihatsu's much-admired impact-sensing system acts as an emergency-alert device by automatically unlocking the doors following an accident, activating the hazard flashers and cutting off the fuel supply.
