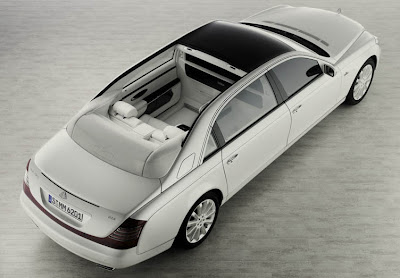

Maybach Landaulet Concept, 2007









• Maybach Landaulet Concept, 2007

With this study of an open-top landaulet, Maybach has re-enlivened the great art of building majestic automobiles. True to the tradition of exclusive landaulets, the roof of this sparkling white one-off study can be opened fully at the rear, while the chauffeur's compartment remains completely enclosed. The passengers are then able to enjoy the clear, blue sky above. Seated in opulent armchairs upholstered in white, they are treated to a majestic open-air experience currently unrivalled by any other automobile in an environment of the utmost luxury and exquisite. Romance close to the heart of nature is harmoniously combined with the ultimate in comfort and technological sophistication. With this unique study, Maybach is once again demonstrating its expertise in building the world's most exclusive luxury cars.

Large folding roof for passengers in the rear
In technical terms the Landaulet study is based on the Maybach 62 S - which can claim to be the world's most powerful series-produced chauffeured saloon. Maybach technicians have removed the rear roof module in order to afford passengers an unobstructed view of the sky above. The side walls remain, and have merely been invisibly reinforced with an integral tubular steel structure. As these measures have not altered the silhouette of the luxury saloon, the generously dimensioned doors and the complete interior with its reclining seats remain unchanged.

When closed the black soft-top of the Landaulet rests on the frame formed by the roof bows, and is wind and weather-proof. When requested by the passengers, the chauffeur operates a switch in the centre console. The roof then opens electro-hydraulically and is gently deposited on the parcel shelf in the rear, together with its integral  of single-layer safety glass. Opening and closing the roof takes 16 seconds. The chauffeur is able to enclose the folded roof with a fitted cover, which both conceals the roof mechanism from view and completes the overall picture of outstanding elegance.

White paintwork and wheels
This impression is accentuated by the white paintwork of the study, an exclusive finish named antigua white. Visual highlights are provided by 20-inch wheels specially designed for the Landaulet study. These are also painted in white with high-sheen spokes, and are accompanied by white indicators in the front and rear light clusters in dark red.

Black for the chauffeur, white for the passengers
In addition, the already luxurious driver's compartment of the successful Maybach 62 S has been enhanced in a number of important respects. All the interior trim is now surfaced in black piano lacquer, and for the extensive leather appointments Maybach has used particularly exclusive, glossy stromboli black leather.

In contrast Maybach has fitted the passenger compartment almost completely in exquisite seychelleswhite leather. The footwell and roof liner of this high-end luxury landaulet are also in white - the floor is carpeted in white velour and the roof lined with white fabric. A dramatic contrast is provided by inserts and decorative trim in glossy, black piano lacquer or exclusive black granite with numerous gold inclusions.

Generous spaciousness and first-class comfort
Outstanding comfort is assured by the generous spaciousness of the rear, which the Landaulet study has adopted unchanged from the Maybach 62. Passengers are welcomed into the interior by two large, single seats. These elegant seats also allow even very tall passengers to enjoy a reclining position which travellers normally only encounter in the first-class armchairs of modern passenger jets.

The study is designed as a chauffeured vehicle and features a partition. The upper section of the partition is a glass panel which the passengers can render opaque at the touch of a button, thanks to a liquid crystal membrane embedded in the glass.

Two ultra-modern automatic climate control systems, whose parameters have been adapted to the Landaulet study, ensure that open-air travel remains a pleasure even under adverse climatic conditions.

State-of-the-art entertainment and communications
As in the Maybach 62 S, the rear console is the centrepiece for entertainment, communications and travelling pleasure. This is where Maybach engineers have grouped everything relating to the entertainment and pleasure of the rear-seat passengers: a DVD-player, six CD-changer, a cooler compartment with its own electric compressor and an intelligent system which holds glasses, goblets and champagne bottles safely in position.

Engine and suspension
The Maybach Landaulet study is powered by the uprated V12 engine which Maybach engineers have developed further for the Maybach 57 S and Maybach 62 S together with the specialists at Mercedes-AMG. Thanks to twin turbochargers and water intercooling, the V12 develops a maximum output of 450 kW/612 hp from a displacement of 5980 cubic centimetres. This is continuously available between 4800 and 5100 rpm, and the engine also delivers an impressive maximum torque of 1000 newton metres between 2000 and 4000 rpm.

The electronically controlled air suspension AIRMATIC DC (Dual Control) and the Adaptive Damping System (ADS II) endow the Landaulet with outstanding levels of ride comfort, at the same time demonstrating that even a prestigious vehicle such as this can exhibit extraordinary agility and dynamic performance.

In addition to large, internally ventilated brake discs - with twin callipers at the front - both the study and the Maybach 62 S are equipped with two electro-hydraulic Sensotronic Brake Control (SBC™) braking systems working in tandem. Together with ESP®, ASR, ABS and Brake Assist, this provides the Landaulet study with the very latest in effective, high-tech handling control systems.

Innovative technology from the sister-brand Mercedes-Benz
Like all Maybach saloons, the Landaulet also benefits from the unrivalled experience of the sister-brand Mercedes-Benz in the development and production of high-quality cars in the luxury segment. Important innovations from Mercedes-Benz, successfully developed further for the Maybach saloons, are standard equipment in every Maybach and are of course also on board the Landaulet study - examples include the electronically controlled air suspension AIRMATIC DC (Dual Control), LINGUATRONIC voice control and the control and display system COMAND APS.

Ferrari 599 GTB Fiorano China, 2009







•  Ferrari 599 GTB Fiorano China, 2009

Ferrari announces the creation of a unique one-off Ferrari 599 GTB Fiorano China Limited Edition, signed by Chinese artist Lu Hao, which will be auctioned on the 3rd of November, 2009 at a special Gala Auction Event hosted by Ferrari in Beijing. This exclusive car follows the announcement in September of a small series of specially-designed Ferrari 599 GTB Fiorano China Limited Edition models which won wide acclaim.

The one-off incorporates a number of the features of the China Limited Edition cars, a very limited series of less than a dozen cars finished in two-tone Rosso Fuoco with silver roof and characterized by unique Chinese design elements.

This one-off model represents an even more exclusive version, thanks to a very special exterior finish which draws inspiration from Ge Kiln porcelain of the Song Dynasty. Lu Hao has blended traditional design elements with Ferrari's innovative styling to create a truly unique vehicle using a 'cracked' glaze pattern which is elegantly coloured, with clearly defined cracks etched at different depths.

Only a few hundred pieces of Ge Kiln porcelain exist today, all of which are priceless treasures. The "cracked" glaze pattern has the lustre of jade and is often used to symbolize the qualities of a true gentleman. Porcelain is one of China's most distinctive ancient arts which was brought to the West via the Silk Road thousands of years ago. Using Ge Kin porcelain as the inspiration for the one-off version is a perfect complement to Ferrari's China Limited Edition Model.

As one of China's most successful and influential contemporary artists, Lu Hao has exhibited his work in major museums and galleries around the world. For this project he drew inspiration from China's rich cultural heritage, and as a Ferrari owner, he has a particularly intimate connection with the brand.

The proceeds generated from the sale of this car will be used on an educational sponsor programme aimed to help young Chinese students in the automotive engineering field. Details of this programme will be released during the auction.

This is just the latest example of charitable events organized by Ferrari in China since Ferrari Maserati Cars International Trading - Shanghai Co. Ltd was set up in 2004. Other fund-raising efforts have seen Ferrari donate over €500,000 to local charities.

Opel Agila, 2008





• Opel Agila, 2008

With five doors and five seats, the new Opel Agila is not only as practical as its predecessor, which sold over 440,000 units, but is now also much more dynamically designed. The small, versatile Opel was unveiled to the public at the 2007 IAA in Frankfurt (September 13 - 23, 2007) and made its market premiere in spring 2008. It boasts balanced proportions, soft curves and a distinctive side graphic. Its passengers still sit high and upright, but the roofline has been dynamically lowered and now blends into a smooth arc toward the rear. This helps create the Opel Agila's aerodynamic drag coefficient of 0.35 - a relatively low figure for a vehicle of this size. The urban car is now 20 centimeters longer, six centimeters wider, but seven centimeters lower than its predecessor.

The front boasts typical Opel styling. With its round headlamps integrated into almond-shaped lamp units that echo the new Corsa, the Opel Agila sees the world through wide eyes. The tapering of the front and rear bumpers are also typical Opel elements, just like the crease in the hood. The rear also features several rounded details. The positioning of the narrow vertical light units, which are accented by the spherically styled rear lights, allowed designers to create a large, easy load-through tailgate.

The same is true for the interior: the boring days are over. A wide selection of fresh colors and modern styles create an ambience that's enhanced even more by the spacious headroom. The versatile five-seater's high seating position ensures good visibility, while the high placed gear stick and height-adjustable steering wheel with radio remote controls ensure easy operation. The rev counter is housed separately on the instrument panel. All other information readouts are given on large, distinctive, round instruments.

As an urban car it also offers plenty of compartments and boxes for storing all passengers' belongings. But it's not just car essentials that the new Opel Agila stows away easily. Despite its compact exterior dimensions, the new Opel urban car boasts a surprisingly large luggage compartment. Its standard capacity up to the luggage compartment cover is 225 liters, large enough for a stroller, for example. One turn of a handle drops the rear bench seat back, increasing the load volume to an impressive 1050 liters - a top value in this segment. The rear bench seat and back also splits 60:40 for even greater versatility.

All Opel Agila models have a wide range of standard equipment, including safety features such as ABS, front and side airbags for driver and front passenger, front passenger airbag deactivation and mountings for the ISOFIX child seat system. And thanks to the five doors as standard, small children can be secured into a child seat quickly and safely. Standard comfort features in the entry-level version include speed-dependent power steering, height-adjustable driver and front passenger seats, rear window washer with interval selection and power tailgate with touchpad. The Enjoy model boasts an even greater range of standard features.

Two gasoline engines make their world premiere in the new Opel Agila. Supplied by cooperation partner Suzuki, they share the same design - aluminum cylinder block and head, as well as two overhead camshafts.

The entry-level unit is the almost one-liter, three-cylinder gasoline engine. The four-valve unit produces 65 hp (48 kW) and has a top speed of 160 km/h. The 1.2-liter four-cylinder gasoline engine produces 86 hp (63 kW), accelerates from zero to 100 km/h in less than 12 seconds and has a top speed of 174 km/h (values for five-speed manual version). The engine is now optionally available with a four-speed automatic transmission - an especially attractive alternative for city driving.

The fuel-saving master among the Opel Agila engines is the 1.3-liter common-rail turbo-diesel. Developed by GM Powertrain, the diesel engine is a true multi-talent and also offers an especially efficient alternative in the Corsa and Astra model lines. In the new Opel Agila it produces 75 hp (55 kW), has a top speed of 162 km/h and a zero to 100 km/h sprint of 13.5 seconds. The powerful diesel unit with a maximum torque of 190 Nm is very economical: on average it consumes less than five liters per 100 km, which represents a CO2 per kilometer value of under 130 g (finalized values not yet available).

Make the Opel Agila even more agile - that was the aim during chassis development. The new dynamic look is also reflected in the car's responsiveness. The Opel Agila's chassis, which features A-arms and McPherson struts in front and a torsion beam axle in the rear, is tuned for driving fun. Depending on the market and equipment variant, the Opel Agila also features an Electronic Stability Program (ESP).

Opel GTC Concept, 2007









•  Opel GTC Concept, 2007

The GTC Concept embodies the confident, emotional direction we're taking with Opel. Its exciting lines combined with its high driving dynamics and interior flexibility reflect what the Opel brand trademark characteristics will be in the future.

The four-seat coupé is powered by a 220 kW/300 hp, 2.8-liter V6 turbo gasoline engine and features an intelligent, electronically-controlled four-wheel drive system, which provides optimum traction and stability as well as excellent agility in all driving conditions.
Brand-typical on-board flexibility is ensured by the thoughtful "Flex4" system (patent application submitted). The backs of both rear seats can be docked separately to the front seats by remote control, creating a spacious three or two-seater with flat load floor and up to 1020 liters of luggage compartment capacity. As is typical of Opel cars, the seats do not have to be removed or installed.

Dynamic design: Visually communicating the Opel brand promise
The GTC Concept reveals the next-generation of Opel styling. Much like the Opel Speedster did in 1999, or the GTC Genève Concept did in 2003 this car marks a break in the evolution of Opel's design language and signals that the next chapter is about to be written.

Key elements of the silk grey-lacquered Coupé concept car finished with a matte grey paint (length/width/height: 4830/1867/1432 millimeters, wheelbase: 2737 mm) begin with an aggressive front end performance face emphasized by large aluminum vertical intakes that intersect the headlamps. These vertical elements are mimicked in the rear exhaust elements, proposing an unmistakable down-the-road signature performance graphic, coming or going.

The proud front is highlighted by a prominent, trapezoidal grille with signature Opel bar and Blitz, executed in polished aluminum, and gracefully finished with a bolder Opel Blitz emblem concept. The centerline crease coupled with the distinctive aluminum vertical intakes and outboard LED vertical driving lamps choreograph in harmony to visually communicate power and strength. The distinctive design continues with LED technology, enabling creative headlamp inner shapes that propose a night time signature illumination graphic in the front and rear lamps.

The other significant design cue of the two-door sport-coupé with its sleek silhouette is the sophisticated bodyside shapes and surfacing. The sheetmetal surfaces suggest athleticism coupled with elegance to provide tasteful distinction in a visually loud marketplace. The car features sculpted side lines that further progress the Opel profile shown on the Antara and Opel GT production vehicles.
In addition, large flares hug the aggressive wheel and tire package, visually suggesting road confidence to the customer. Thanks to the wide track (front/rear: 1627/1629 mm), the Opel GTC Concept provides a commanding stance, planted by 20-inch rims with 245/40 R20 "red line" styled rubber. The wheels reference the motor sport aesthetic of black rims - however, elegantly finished with high- gloss black spokes contrasted with machine polished edges, alluding a signature performance wheel look.

The GTC Concept's rear visual solutions strategically echo the design language of the nose with an integrated rear bar and blitz emblem resting on the distinctive Opel rear center crease. Sophisticated surface development sculpturally integrates the rear spoiler into the sheetmetal to visually communicate performance. The rear appearance features Opel signature shaped rear lamps, uniquely displaying a LED night lighting graphic showcasing the exterior brand identity. The smart exterior shape and aerodynamic characteristics are rewarded by the cD value of 0.25.

The Interior design: Warmer and more inviting
Opel's interior designs have progressed to become warmer and more inviting in products like the new Corsa, Antara and Opel GT. However, the Opel GTC Concept significantly represents the next chapter of Opel's interior brand identity. Echoing the exterior, the interior shapes and surfaces are sculpturally-crafted to visually articulate a dynamic driving experience. The dashboard's top-pad wraps around from the instrument panel to the door, embracing the occupants. The sweeping décor dynamically stretches one's eye from the surfaces of the door and instrument panel, creating a memorable environment. The horizontal theme is secured with a large integrated centerstack design floating above the décor surface, an appearance reminiscent of premium audio equipment.

Complementing the exterior material theme, matte ebony surfaces are contrasted with rich high-gloss piano black décor finishes and structurally elegant aluminum accents, revealing a new standard of Opel aesthetics. The U-shaped aluminum graphic on the steering wheel is reflected again on the center console and the gear shifter, visually connecting the driving interfaces to emphasize Opel's driving dynamics. The rotating navigation control is ergonomically positioned, allowing it to easily be located and controlled by the driver, without having to remove his/her eyes from the road. The four, sporty, round instruments encircled by translucent rings are backlit in dynamic red, replacing Opel's traditional amber tones. These interior appearance solutions intentionally reinforce the dynamic ownership experience Opel provides.
As a final identity concept, the refined "redline" graphic of the tire pattern is vertically woven into the contoured sport seat surfaces and the centerline of the steering wheel, proposing that a visual performance identity can be distinctive without compromising taste.

Intelligent packaging: Compact exterior with spacious, flexible interior
With the lower seating position and vertical hip point ? known as the H-point? , both front occupants sit perfectly integrated in the car. Thanks to the lower-set instrument panel, outward visibility remains excellent. This also provides a generous sense of space, an effect strengthened by its color: the instrument panel's upper section is dark, while the lower section is light.

The intelligent packaging is further highlighted by plenty of space in the rear of the Opel Concept car, despite its flat roof line: rear headroom is 920 millimeters. The rear seats are set low, but the four-seat, two-door car still offers Opel's brand-typical flexibility thanks to a novelty developed by Opel engineers: the "Flex4" interior concept (patent application submitted).
"Flex4" enables the backs of both the rear seats in the Coupé concept car to be moved forward separately at the touch of a button via sensor-control and docked to the front seats. The luggage compartment cover is thereby automatically pulled over the remaining seat surfaces in the floor. This creates a three or two-seater with a flat load floor up to 1.80 meters long. Luggage compartment capacity increases from 500 liters to 755 liters (three-seater) or up to 1020 liters (maximum capacity: up to waistline).

Powerful engine and intelligent four-wheel drive system
The Opel GTC concept car is powered by a turbocharged, 220 kW/300 hp, 2.8-liter V6 gasoline engine with two variable camshafts, which is combined with a six-speed manual transmission. Maximum torque of 400 Nm is available from 1850 up to 4500 rpm, and accelerating from zero to 100 km/h is calculated to take around six seconds. Top speed is limited to 250 km/h.

The power from the high-tech turbo engine is channeled via an advanced, electronically-controlled four-wheel drive system, which is fully integrated into the car's adaptive IDSPlus chassis management system. An electronically-regulated torque transfer device seamlessly distributes power between the front and rear axles for optimum traction and driving performance. The high-speed control allows more power to be provided to the rear axle before any traction loss can occur, for example during quick acceleration. This creates a driving feel similar to a sporty rear-wheel drive car. An electronically-controlled limited slip differential at the rear axle provides additional stability and traction thanks to torque distribution between the rear wheels.

Major benefits of the Opel GTC Concept's intelligent four-wheel drive system are: optimum traction and stability in all driving conditions as well as excellent agility and an active driving feel.

Lincoln MKR Concept, 2007









•  Lincoln MKR Concept, 2007

LINCOLN MKR CONCEPT FEATURES NEW DESIGN DIRECTION
Lincoln is pulling the wraps off a head-turning new concept car at the North American International Auto Show next week, signaling its design strategy for the next-generation of premium American vehicles and launching a new engine family.
The Lincoln MKR concept introduces a new design language of "elegant simplicity" on a four-door coupe that also features environmentally friendly amenities and fuel-saving technology, including its TwinForce™ engine.
The concept's 3.5-liter gasoline twin-turbocharged direct-injection V-6 performs comparably or better than V-8 engines, delivering 415 horsepower and 400 lb.-ft. of torque on renewable E-85 ethanol.

The New Era of Lincoln Design
The new design - created by a team led by Peter Horbury, executive director, Design, The Americas - showcases the visual elements that will influence a new generation of Lincoln products.

The Lincoln MKR concept features seven key exterior cues, which define modern Lincoln design:
    * Clean, uncluttered surfaces
    * Powerful, dynamic beltline
    * Chamfered surface running parallel to the beltline
    * Distinctive Lincoln bow-wave, double-wing grille opening
    * Thin, horizontal taillamps that run from one side to the other
    * Significant C-pillar smoothly transitioning into the cantilevered roof, and
    * Powerful cantrail/roofrail

Three or four of these design elements are likely to appear on future production Lincolns, including the concept's most dramatic feature: the double-wing grille inspired by the 1941 Lincoln Continental Cabriolet. The split grille is designed to resemble the bow of a boat cutting through the water, giving the oversize Lincoln star a proper home on which to stand proud.
The Lincoln MKR concept's four doors and body side remain characteristically clean. A button concealed in the chrome door trim springs open the four 'winged' doors, slightly inclined for additional sophistication and a touch of drama.
From the rear, the coupe concept is instantly recognizable as a Lincoln, thanks to full-width LED taillamps stretching from side to side.
From above, this Lincoln proudly showcases its brand heritage with a large structural Lincoln star that punctuates the glass roof spanning the top of the car.

The Modern, 'Guilt-free' Luxury Touches
Inside, the Lincoln MKR concept defines a new direction for modern luxury, with ambient lighting and contrasting colors and materials that offer both a new look and philosophy for future Lincoln interiors.

A black oak instrument panel engineered from recycled wood stretches from side to side and carries through to a twin-level floating center console that extends into the rear of the cabin.
This expansive 'T-shaped' panel houses the passenger information display system seamlessly disguised by the flush touch screen control surfaces and a navigation screen that can be concealed by a powered door.
The instrument cluster provides a jewelry-like focal point. Chrome-trimmed gauges illuminated with Ice Blue lighting can be easily viewed in harmony with the concave spoke steering wheel that includes retractable paddle shifters.

Ice Blue lighting is carried throughout the high-contrast interior, emitting from the door panels, mohair-carpeted foot wells, seats, center console and perhaps most dramatically from the large Lincoln star above which is easily viewed from each of the Lincoln MKR concept's four seats.
Each soy-foam based seat stands alone, looking as if suspended in air, wrapped in a creamy cashmere leather made through a more environmentally friendly chromium-free process. Seatbacks are finished with high-gloss, ceramic-looking shells.
The concept also features the THX II Certified Car Audio System, Lincoln's signature audio system, which produces sound quality comparable to home theater systems.

Innovative TwinForce Powertrain
Under the Lincoln MKR's sculpted hood is the exquisitely detailed TwinForce engine, finished in chrome and accented in the cranberry red metallic paint that dresses the rest of the modern exterior.
This marks the birth of the new TwinForce engine family that will power production versions of a range of future Ford and Lincoln products.
TwinForce uses direct injection technology and turbocharging. These technologies are common in diesel engines but have only recently been combined together in gasoline engines.
The Lincoln MKR's engine also is flex fuel capable, providing the driver with the flexibility to switch back and forth between gasoline and E-85 ethanol. Combining the high octane found in E-85 or premium gasoline with TwinForce technology allows the MKR's V-6 to deliver 415 horsepower and 400 pound-feet of torque - an impressive 118 horsepower per liter.

To achieve this type of performance from a V-8 would require an engine displacement of 6.0-liter or larger, nearly double the size of the 3.5-liter in the Lincoln MKR. As a result of the smaller V-6, the Lincoln MKR concept delivers 15 percent better fuel economy than a V-8 with similar performance.
The concept's engine is mated to a six-speed transmission, and the concept features independent rear suspension for more refined road manners.
The car sits on 21-inch chrome aluminum wheels fitted with unique Michelin tires that feature the Lincoln star in its treads.

Ferrari California, 2009

















• Ferrari California, 2009

The Ferrari California is an exceptionally innovative car whose philosophy takes its inspiration from the spirit and emotions of one of the great Ferraris of the past, the 1957 250 California, a superbly elegant open top car designed for the track, which has, over the years, come to symbolise not only superior sportiness and performance but also exclusivity, craftsmanship and faultless sophistication.

This new car joins Ferrari's 8-cylinder range which is made up mostly of very high performance models. It also flanks the 12-cylinder flagship Ferrari 612 Scaglietti in the Grand Tourer category. The Ferrari California is a car with the track in its DNA. It is enormously innovative and will more than fulfil the expectations of even our most discerning clients, offering breathtaking driving pleasure and fun behind the wheel as well as extreme versatility of use and in-car comfort. It is available exclusively as a convertible with retractable folding hard top in either a two-seater version with a traditional rear bench or in the 2+ version which sees the rear bench equipped with seating for one to two passengers.

In line with Ferrari tradition, this model positively brims with innovative features. In addition to its retractable hard top and the aforementioned original 2+ concept, the new Prancing Horse car also offers: a new direct injection V8 engine, a 7-speed gearbox with steering wheel-mounted F1-style paddles coupled with a new dual clutch, a new suspension system (double wishbones at the front and multilink at the rear), the new evolved F1-Trac traction control system and Brembo brakes with CCM (carbon ceramic material) discs as standard (this latter feature is shared by the other models in the current range).

Styling
The California's sleek aerodynamic styling is, like the rest of the current Ferrari models, the result of our longstanding collaboration with Pininfarina and offers a host of signature Ferrari styling cues. Viewed from the side, the aerodynamic sweep of the bonnet beautifully contrasts with the compact tail volume and the pulled-back cabin. The front continues some of the themes hinted at on the flanks, harmoniously alternating concave and convex volumes. Seen head-on, the car clearly takes it much of its inspiration from the prestigious Prancing Horse car from which it takes its name: the grille and slender air intake at the centre of the bonnet most notably harking back to the 250 GT California. At the rear, the sides and the muscular tail section are both familiar too. As at the front, the single round LED taillights are inset directly along the edge of the boot. The California's vertically stacked twin tailpipes are an original flourish as is the boot which sweeps right down to the bumpers to improve functionality. Of course, the interior also reflects the same level of design sophistication, exuding a sense of refined luxury, comfort and bespoke quality. Situated between the front seats, the new aluminium-trimmed centre console is another distinctive touch that goes beyond the merely aesthetic, beautifully combining functionality and design.

Aerodynamics
The Ferrari California's aerodynamics were, of course, developed in tandem with its styling. This allowed Ferrari to keep the Cx (drag coefficient) right down with respect to the downforce required for optimal vehicle dynamics. In the coupé configuration, the Ferrari California has a Cx value of 0.32. A desire to achieve perfect balance between vertical load and drag influenced the shape of the rear diffuser and the spoiler incorporated into the front bumper. Drag has been cut to 10% lower than on the other Ferrari models which not only makes the Ferrari California a more aerodynamically efficient car but also reduces fuel consumption. Last but not least, the air intake on the bonnet ensures highly efficient cooling of the engine compartment.

The new 8-cylinder engine
This is the first V8 in the history of Ferrari road-cars to be mid-front mounted. Built entirely from aluminium, it retains the typical Ferrari architecture with a 90° angle between the two cylinder banks and a 180° angle between the cranks.
The engine has a total displacement of 4,300 cc and a maximum power output of 460 hp/338 kW at 7,750 rpm. With a specific power of 107 hp/litre, its maximum torque is 485 Nm (49 kgm) at 5,000 rpm, 75% of which is available at just 2,250 rpm. The Ferrari California takes less than 4 seconds to accelerate from 0 to 100 km/h and delivers a blistering 310 km/h top speed.
The new V8 features direct fuel injection and variable timing (on both intake and exhaust) to guarantee superb performance, exceptional handling and fuel consumption and emissions that easily comply with the toughest Euro 5 and Lev2 standards. Thanks in part to these solutions, the Ferrari California consumes just 13.1 litres/100 km (ECE combined) and has carbon emissions of 305.6 g\km (ECE combined).

The Gearbox and transmission
The Ferrari California sports a new dual clutch gearbox (7-speed + reverse) with the now traditional steering wheel-mounted F1-style paddles. This is an innovative system that guarantees a superb combination of performance and ride comfort. With the dual clutch, one clutch is used for even-numbered gears and the other for odd-numbered ones, and allows the pre-selection of the next gear required.The gears are changed by overlapping the opening and closing stage of both clutches, resulting in gearshifting times that are close to zero and with no "torque interrupt". The result is not only enhanced performance but truly thrilling driving pleasure. The traditional transaxle layout (engine to the front and gearbox to the rear) also contributes to the California's perfect weight distribution (47% front - 53% rear) and to reducing vibration to the bodyshell. In manual mode, the new gearbox guarantees great sporty driving pleasure while extra comfort is assured in automatic.

The Chassis and suspensions
The Ferrari California's chassis and bodyshell are both made entirely from aluminium. Thanks to the use of different aluminium technologies (extrusions and shell casts), the car's exceptional versatility, onboard comfort and driveability has not added to chassis weight or to the dimensions of the structural sections - something that simply would not be the case had traditional steel architecture and technologies been used. Furthermore, static rigidity (torsional and flexional) has been improved with respect to average figures for a Spider to ensure exceptional handling in any kind of road conditions and to guarantee GT-standard comfort both with the top up and down.

The Ferrari California retains the traditional double wishbone suspension to the front while a new multilink system has been specially developed for the rear. The multilink system improves longitudinal flexibility of the suspension, keeping transverse rigidity values high. What this means in practice is that the car beautifully absorbs any unevenness, and noise and vibration are efficiently damped for exceptional ride comfort well on a par with the car's nimble handling. The SCM Magnetorheological Suspension Control System, debuted on the Ferrari 599 GTB Fiorano, is also available on request.

Retractable Hard Top
It is made from aluminium panels and has a cast aluminium weight-bearing structure which has reduced its overall weight and the moving masses involved. The entire opening/closing cycle is completed in just 14 seconds and thanks to the original stowage system, the California's boot space remains extremely generous regardless of whether it is up or down.

The GT Manettino and F1-Trac
The manettino has now become one of the classic features of our entire range as has its position on the steering wheel which is clearly derived from our Formula 1 experience. The manettino integrates the gearbox, stability and traction control systems (CST and F1-Trac) and the SCM suspension system.

The settings are as follows:

• COMFORT: maximum safety in all conditions, particularly ideal for low grip situations (wet or slippery road surface). Best  everyday driving setting.
• SPORT: maximum performance and stability in perfect grip situations. Recommended for sporty, high performance driving.
• CST-OFF: this setting gives the driver complete freedom and control of the car. There is no electronic intervention whatsoever  apart from ABS.

The Ferrari California also sports the F1-Trac traction control system which can very accurately read grip, assuring the very best can be made of the car's potential at any time.

The F1-Trac system guarantees:
    * Maximum grip coming out of corners
    * Stability in all driving conditions
    * Superb driveability and handling in extreme situations
    * Consistent performance
    * Exceptional ride comfort.

Safety equipment
The Ferrari California boasts an ejectable roll-bar to ensure that its occupants are protected should the car overturn. The system is installed behind the backrests of the rear seats and is hidden by the trim of the same. Ejection time is under 190ms. The onboard safety equipment is completed by front retractable airbags (driver and passenger sides), side retractable air bags in door panels, bi-xenon headlights and LED rear lights. New generation adaptive headlights, known as AFS (Advanced Frontlighting System), are also available on request, and offer improved visibility on the road. The headlamp beam angles are automatically adjusted in line with steering, angle, speed and lateral acceleration, offering a wider area of illumination when cornering.

Interior and standard equipment
Particular attention has been lavished on the design and in-car comfort standard of the California's cabin. The new Ferrari is available in a choice of two configurations:
   1. Two-seater plus rear bench equipped to take two roller suitcases or two golf bags.
   2. 2+ configuration that sees the rear bench sporting two seats, Isofix attachment points, and two seat belts.

In both version, the rear backrest folds down to allow the stowage of longer items such as golf bags or skis. The boot capacity is also impressively generous: 340 litres with the top up and 240 with the top down.
A new electrically adjustable, magnesium-framed seat was also designed for the Ferrari California. Another new feature is the instrument panel with analogue instruments (tachometer and rev counter) and four-screen TFT Multidisplay. The Ferrari California also boasts a new infotainment system with 6.5'' touchscreen, Sat Nav, USB connection, Bluetooth, hard disc, voice commands and IPOD connector.
Samples of the various materials and virtual configuration tools will also be available to clients at every Ferrari showroom to help them make their choices too. They may also request outof- range colours and content to really ensure their Ferrari California is absolutely unique.

FERRARI CALIFORNIA TECHNICAL SPECIFICATIONS
    * DIMENSIONS AND WEIGHTS
          o Length: 4563 mm
          o Width: 1902 mm
          o Height: 1308 mm
          o Wheelbase: 2670 mm
          o Front track: 1630 mm
          o Rear track: 1605 mm
          o Dry weight: 1630 kg
          o Kerb weight: 1735 kg
          o Weight distribution: 47% Front - 53% Rear
          o Fuel tank capacity: 78 l
          o Boot capacity: 340 l, 240 l (with roof retracted)
    * TYRES
          o Front: 245/40 ZR19"
          o Rear: 285/40 ZR19"
          o Front (optional): 245/35 ZR20"
          o Rear (optional): 285/35 ZR20""
    * CARBON-CERAMIC BRAKES
          o Front: 390 x 34 mm
          o Rear: 360 x 32 mm
    * ELECTRONIC CONTROL SYSTEMS
          o CST with F1-TRAC Stability and Traction Control System
          o TPTMS Tyre Pressure and Temperature Monitoring System
    * ENGINE
          o 90° V8 Direct Injection
          o Bore and stroke: 94 x 77.37 cc
          o Overall displacement: 4297 cc
          o Compression ratio: 12.2:1
          o Maximum power output: 338 kW (460 CV) @ 7750 rpm
          o Maximum torque: 485 Nm (49 kgm) @ 5000 rpm
    * PERFORMANCE
          o Maximum speed: 310 km/h
          o 0-100 km/h: under 4.0 sec
          o 0-400 m: 12.2 sec
          o 0-1.000 m: 22.1 sec
    * GEARBOX
          o F1, dual-clutch, 7-speed plus reverse
          o Manual 6-speed + REV
    * SUSPENSION
          o Front: Double wishbone
          o Rear: Multilink
    * FUEL CONSUMPTION
          o ECE Combined: 13.1 l/100 km
    * CO2 EMISSIONS
          o ECE Combined: 305.6 g/km
